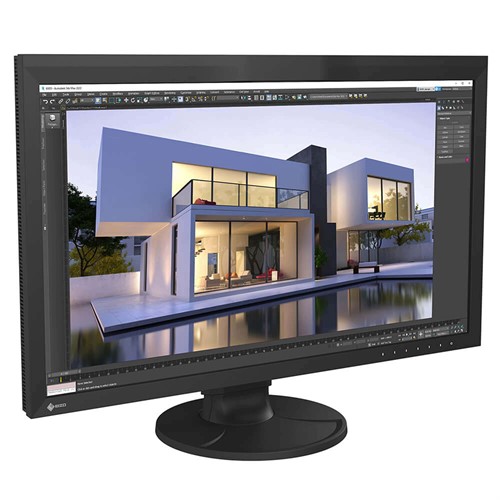

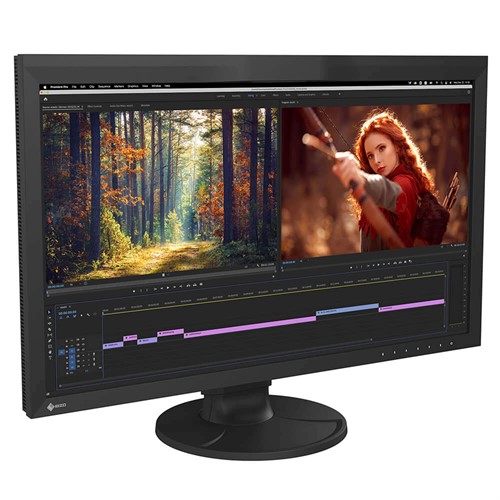

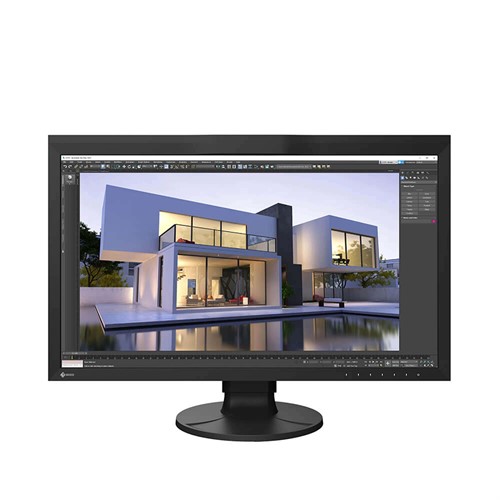

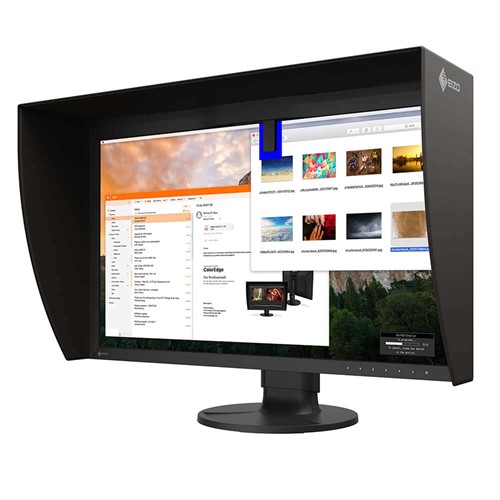

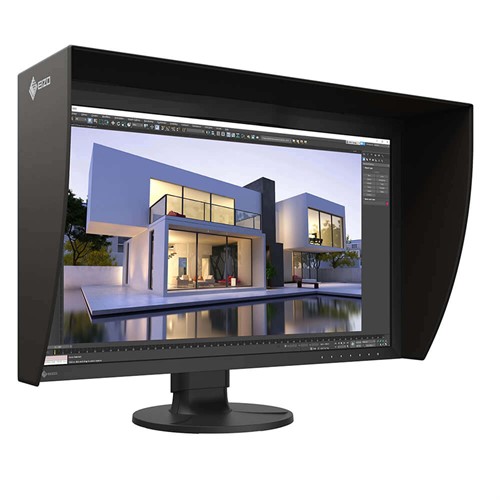

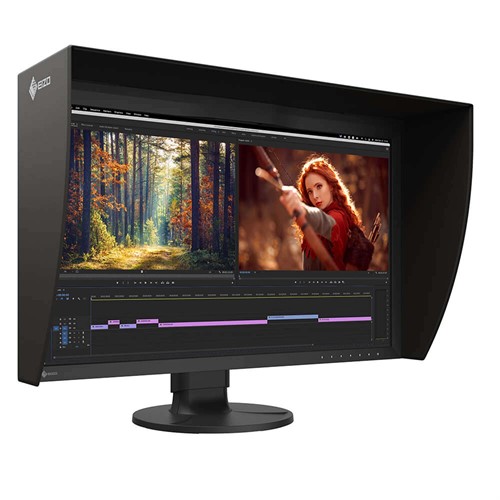

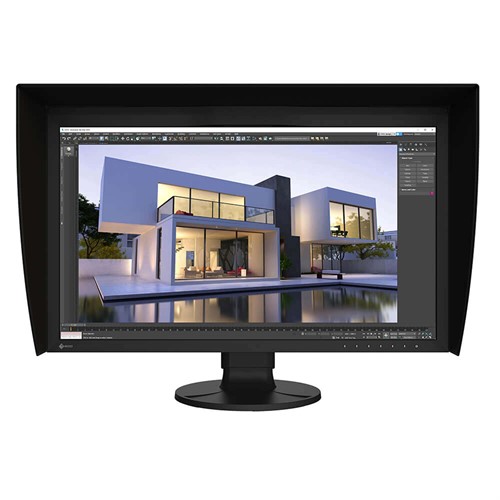

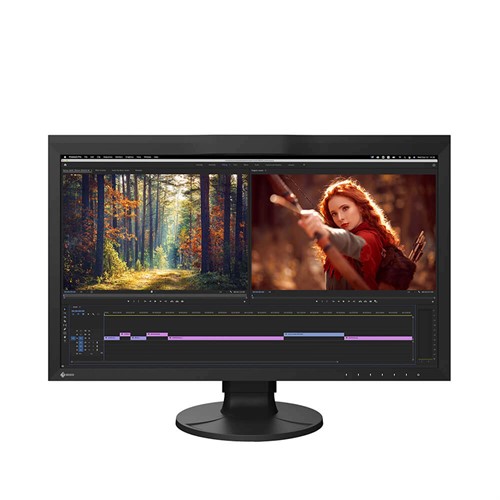

The EIZO ColorEdge CG2700X is a professional-grade monitor designed for photographers, graphic designers, and other visual artists who require precise color accuracy and consistency. This 27-inch monitor features a 3840 x 2160 pixel resolution, a wide color gamut, and advanced calibration features to ensure that your colors are accurate and consistent from project to project.
- 27-inch monitor with 3840 x 2160 pixel 4K resolution
- Built-in hardware calibration system for precise color adjustment
- Wide color gamut covering 99% of Adobe RGB and 98% of DCI-P3
- High contrast ratio of 1500:1 for deep blacks and bright whites
- Adjustable stand for height, tilt, and swivel adjustments
- Stable and sturdy design to prevent wobbling or shaking
- Multiple inputs including HDMI, DisplayPort, and USB Type-C
- USB Type-C port for charging and data transfer
Ideal for photographers, graphic designers, and other visual artists who require precise color accuracy and consistency.
4K UHD resolution
Thanks to the resolution of 3840 x 2160 (4K UHD), the CG2700X has an enormous pixel density of 164 ppi. Visible monitor pixels are guaranteed to be a thing of the past and even the monitor display gives a very meaningful impression of the subsequent print resolution. The IPS panel has a maximum brightness of 500 cd/m² and achieves a contrast ratio of 1450:1. Films can be assessed, edited and graded with the CG2700X in full 4K UHD resolution. The LCD module allows a viewing angle of 178 degrees. This keeps colour tones and contrasts stable in the user's viewing cone.
Wide gamut colour space for saturated colours
To be able to use the entire colour spectrum of modern cameras, you need a monitor with the largest possible colour space. Only then is it possible to visually assess and edit the saturated hues contained in the file. That is why the IPS panel of the ColorEdge CG2700X covers, for example, the wide AdobeRGB photo gamut as well as the CMYK print gamut ISO-Coated V2 to more than 99 %. This means that the full colour spectrum of modern cameras is represented unaltered and without gaps. And a precise simulation of the print result in the softproof view is also guaranteed.
Smooth and fluid transitions and gradients thanks to 16-bit LUT and 10-bit mode
The LUT (look-up-table) on the CG2700X employs internal calculations with 16 bits for an extremely high colour depth and outputs the signals with up to 10 bits. This provides billions of hues for calculating the precise monitor display, effectively preventing display errors caused by the monitor such as banding or clipping, which can result in tonal breaks in gradients or unnecessary colours in greyscale. Even fine nuances and structures in dark or highly saturated areas of the image can be displayed in a differentiated and detailed manner.
True Black: Colour depth for plastic images
Dark tones often appear faint or washed-out on LCD screens. True Black improves the contrast ratio and dark tones appear deeper – particularly when looking at the monitor from the side.
Digital Uniformity Equalizer: perfect rendering across the entire screen
Each individual monitor panel is precisely measured over the entire surface at the EIZO factory. Any inhomogeneities in brightness and unnecessary colour are detected and removed. This process (Digital Uniformity Equalizer) guarantees that identical colours always look the same over the entire service life of the monitor, no matter where they are displayed. Only in this way is precise image processing and retouching possible.
Integrated sensor for self-calibration
An integrated calibration sensor ensures you achieve maximum colour accuracy. The sensor is perfectly aligned to the monitor, takes environmental influences such as light into account, and correlates the centre of the image with the edge of the image. This ensures an even result over the whole monitor.
The sensor is located in the bezel and is only extended when performing measurements. This means that no external calibration device is necessary, and the colour fidelity of the monitor is optimal at all times.
The CG2700X is equipped with the latest sensor technology, allowing it to be recalibrated on the fly. So you can continue working with applications that are not colour-critical while the monitor calibrates. The sensor only takes up a small amount of space on the screen during calibration and therefore does not interfere. Calibration can also take place completely automatically at definable times, even if the computer is switched off or not connected to the monitor at all.

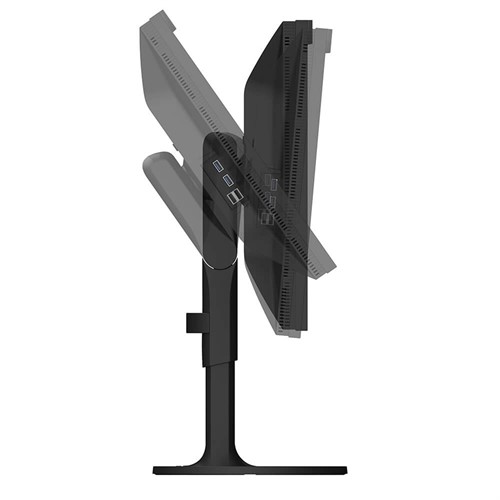

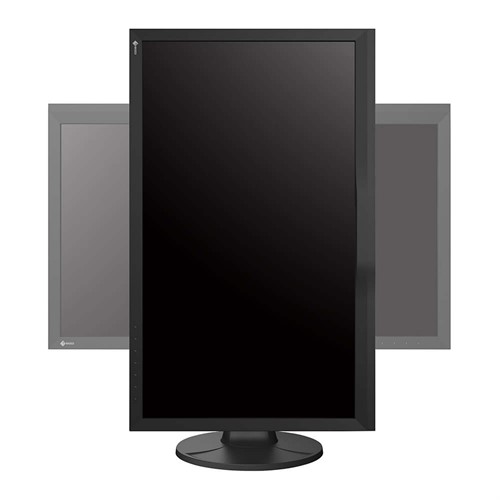

Adjustable stand
Another key feature of the CG2700X is its adjustable stand, which allows you to adjust the height, tilt, and swivel of the monitor to suit your needs. The stand is also designed to be stable and sturdy, which helps to prevent wobbling or shaking when you are working.
Connectivity
In terms of connectivity, the CG2700X has a wide range of inputs, including HDMI, DisplayPort, and USB Type-C. This makes it easy to connect the monitor to a wide range of devices, including laptops, desktops, and cameras. The USB Type-C port also allows you to charge your devices and transfer data quickly and easily.
The EIZO ColorEdge CG2700X is an excellent choice for professionals who require precise color accuracy and consistency. With its advanced calibration features, wide color gamut, and adjustable stand, it is an excellent investment for anyone who needs to work with images, graphics, or other visual media.
PANEL
|
|
Type: |
IPS |
Backlight: |
Wide-Gamut LED |
Size: |
26.9" (68.4 cm) |
Native Resolution: |
3840 x 2160 (16:9 aspect ratio) |
Viewable Image Size (H x V): |
596.2x335.3 mm |
Pixel Pitch (H x V): |
0.155 x 0.155 mm |
Pixel Density: |
164 ppi |
Display Colors: |
1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
Viewing Angles (H / V, typical): |
178°, 178° |
Brightness (typical): |
500 cd/m2 |
Recommended Brightness for Calibration: |
120 cd/m2 or less |
Contrast Ratio (typical): |
1450:1 |
Response Time (typical): |
13 ms (gray-to-gray) |
Color Gamut (typical): |
Adobe RGB: 99%, DCI-P3: 98% |
VIDEO SIGNALS |
|
Input Terminals: |
USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3) |
Digital Scanning Frequency (H / V): |
USB Type-C, DisplayPort: 25 - 137 kHz / 23 - 61 Hz HDMI: 15 - 135 kHz / 23 - 61 Hz |
USB |
|
Upstream: |
USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 94 W max.), USB 5Gbps: Type-B |
Downstream: |
USB 5Gbps: Type-A x2 USB 2.0: Type-A x2 |
USB LAN Adapter: |
RJ-45 (1000BASE-T) |
POWER |
|
Power Input: |
AC 100-240 V, 50/60 Hz |
Typical Power Consumption: |
34 W |
Maximum Power Consumption: |
225 W |
Power Save Mode: |
0.5 W or less |
|
|
Built-in Calibration Sensor: |
Yes |
|
|
FEATURES & FUNCTIONS |
|
Brightness Stabilization: |
Yes |
Digital Uniformity Equalizer: |
Yes |
Preset Modes: |
User, BT.2020, BT.709, DCI-P3, PQ_DCI-P3, HLG_BT.2100, AdobeRGB, sRGB, Calibration (CAL), SYNC_SIGNAL |
HDR Gamma: |
HLG, PQ curve |
OSD Languages: |
English, German, French, Spanish, Italian, Swedish, Simplified Chinese, Traditional Chinese, Japanese |
Others: |
Color Adjustment, PQ Option, HLG Option, SelfCalibration, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, Nearest Neighbor, Zoom, DCI 4K Cropping, BT.709 Gamut warning, Luminance Warning, Marker, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority, Ethernet |
PHYSICAL SPECIFICATIONS |
|
Dimensions (Landscape, W x H x D): |
638x415.9 - 570.9x245 mm |
Dimensions (Without Stand, W x H x D): |
638x390x86.2 mm |
Dimensions (Landscape with Hood, W x H x D): |
648x420.9 - 575.9x346 mm |
Net Weight: |
9.8 kg |
Net Weight (Without Stand): |
6.8 kg |
Net Weight (With Hood): |
10.3 kg |
Height Adjustment Range: |
155 mm |
Tilt: |
35° Up, 5° Down |
Swivel: |
344° |
Pivot: |
90° |
Hole Spacing (VESA Standard): |
100x100 mm |
ENVIRONMENTAL REQUIREMENTS |
|
Operating Temperature: |
0-35°C |
Operating Humidity (R.H., non condensing): |
20-80% |
|
|
Certifications & Standards (Please contact EIZO for the latest information.): |
CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, EAC, RoHS, WEEE, TUV/Ergonomics |
|
|
DEDICATED SOFTWARE |
|
Easy Screen-to-Print Color Matching Tool Quick Color Match: |
Supported |
Monitor Management Software ColorNavigator NX: |
Supported |
PROPRIETARY SOFTWARE |
|
Color Management Software ColorNavigator 7: |
Supported |
SUPPLIED ACCESSORIES |
|
Signal Cables: |
DisplayPort (2 m), HDMI (2 m) |
Others: |

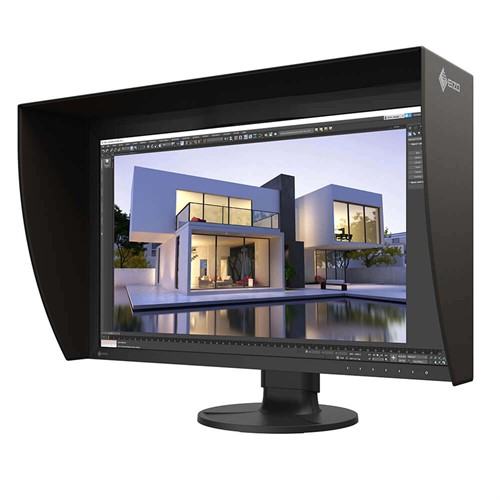

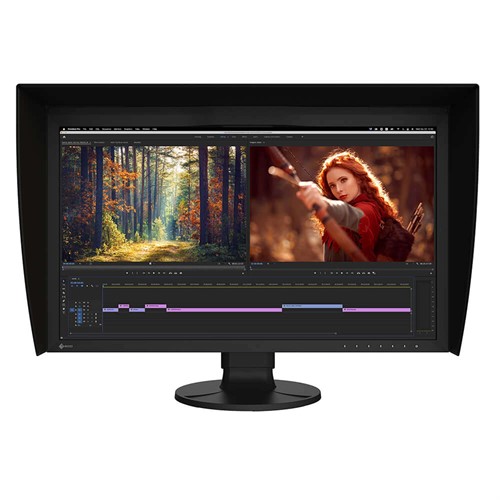

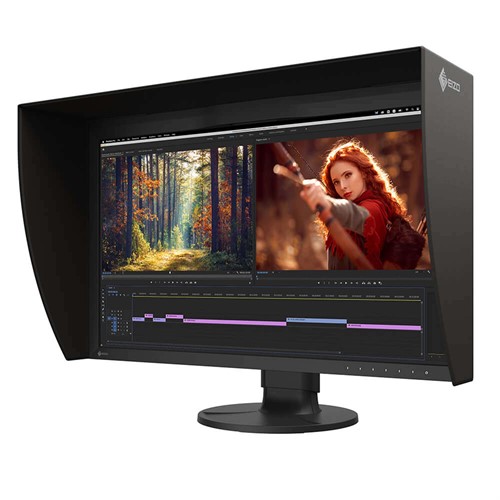

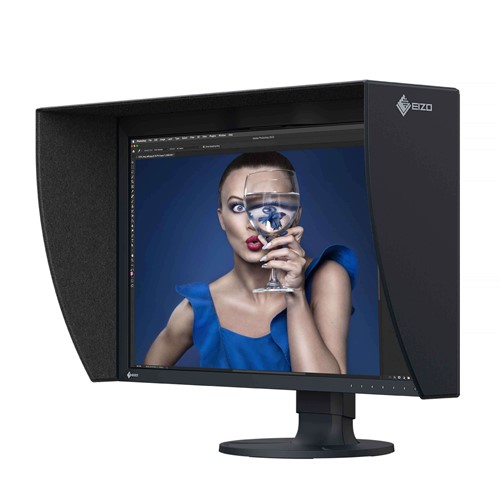

AC power cord, USB Type-A - USB Type-B cable (2 m), Setup guide, Factory Report, ScreenCleaner, Monitor hood, Warranty card |
|
|
Warranty: |
5 Years* Zero bright sub-pixels for six months from date of purchase |
* With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
