Hedler Profilux LED 1400, a professional LED light unit, using the very latest technology, with Fresnel lens 20º-60º and built-in ballast pack. The Hedler Profilux 1400 LED is a continuous light unit using ONE high power, single LED unit with daylight colour temperature approx. 5600K and a CRI > 95 - flicker-free! It has an extremely quiet fan cooling and special, active LED cooling; the LED has an average lifetime of approx. 50000 hours!
The Hedler Profilux LED1400 is fitted with an fresnel lens and can be adjusted from spotlight to floodlight, simply by turning the focusing knob. The unit can be used with all the existing Hedler reflectors and softboxes: full integration into an existing system!
More features: LED soft start, digital display with light output power indicator, dimmable from 5% up to 100% light output, service indicator and status LEDs, integrated electronic ballast, fan control automatic and manual, recalibration option, automatic mains voltage recognition, multi-voltage from 100 up to 240V, integrated overheat protection, integrated LED safety switch-off and an integrated operation-hour counter.
DMX Controller

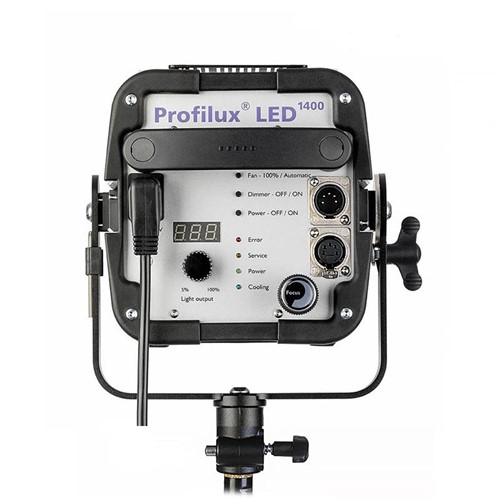

On the backside of the light units housing there are two 5-pin DMX-sockets with standard pin configuration. Connected to a suitable DMX controller the light units can be switched on / off and the light output power can be adjusted remotely.
The upper DMX connect is used for the forementioned operations of the light unit.
The lower DMX connect is used to connect another light unit and works as a „pass-through feature“ for the DMX-signal.
Setting the DMX-address of the respectively light unit is done directly at the light unit, no additional accessory is needed.
Compact and versatile
With its compact size an lightweight construction it is perfectly suited for studio and location work.
The Profilux 1400 LED produces a light beam that is very low in heat, a very important feature for sensitive materials and humans!
The HEDLER Profilux 1400 LED is compatible with a vast range of light shaping accessories used by other Hedler Daylight and Tungsten units: reflectors, honeycombes, softboxes, striplites, reflex umbrellas and many more.
Features
- High power, single LED
- Up to 244 000 lux
- Input power 185 W, corresponds to 138 lumen per watt
- DMX-sockets
- Tough, well built Aluminium construction
- Fresnel lens focussing spot to flood setting
- 5600 K, CRI 95 & Flicker-Free
- 50,000 hours operating lamp life
- Dimmable, stepless from 5% to 100%
- Unique: Built-In Ballast!!
- Ultra quiet fan, no problem for sound recording
- For Film, Video, TV and Stills Imaging
- Huge accessory range: reflectors, barndoors, filters, softboxes
- Automatic mains voltage recognition
- Integrated overheating protection
Specification
| Type |
Singel Cell LED, Constant Daylight Fresnel Head |
| Wattage |
185W (1400W Equivalent) |
| CRI |
> 95 |
| Kelvin |
Approx 5600K Daylight |
| Dimmable |
5% to 100% |
| Zoom Angle |
Approx 20° - 60° |
| Fan Cooling |
Auto and Manual |
|
Overheating Protection
|
Yes |
| AC Power Supply |
110-230V / 50-60Hz |
| Ambient Temperature |
-15° up to +40° |
| Average Lifetime LED |
Approx 50000 hours |
| Length of Power Cord |
3,5m |
| Attachment to Light Stand |
5/8" |
| Weight |
3.6Kg |
| Size |
(L) 250 x (W) 165 x (H) 180 mm w/o bracket |
Hedler har över 40 års erfarenhet av design och tillverkning av belysning för video, film, TV och stillbilder. Hedler armaturer är byggda enligt mycket höga specifikationer vilket gör dem unikt robusta och pålitliga. Hedler armaturer ger stabilt, kontinuerligt ljus i både glödljus- och dagsljusfärgtemperaturer. Ett omfattande tillbehörssystem gör enheter otroligt mångsidiga och passande för den kreativa bildskaparen lika väl som användare inom vetenskap, dokumentation och medicin.
